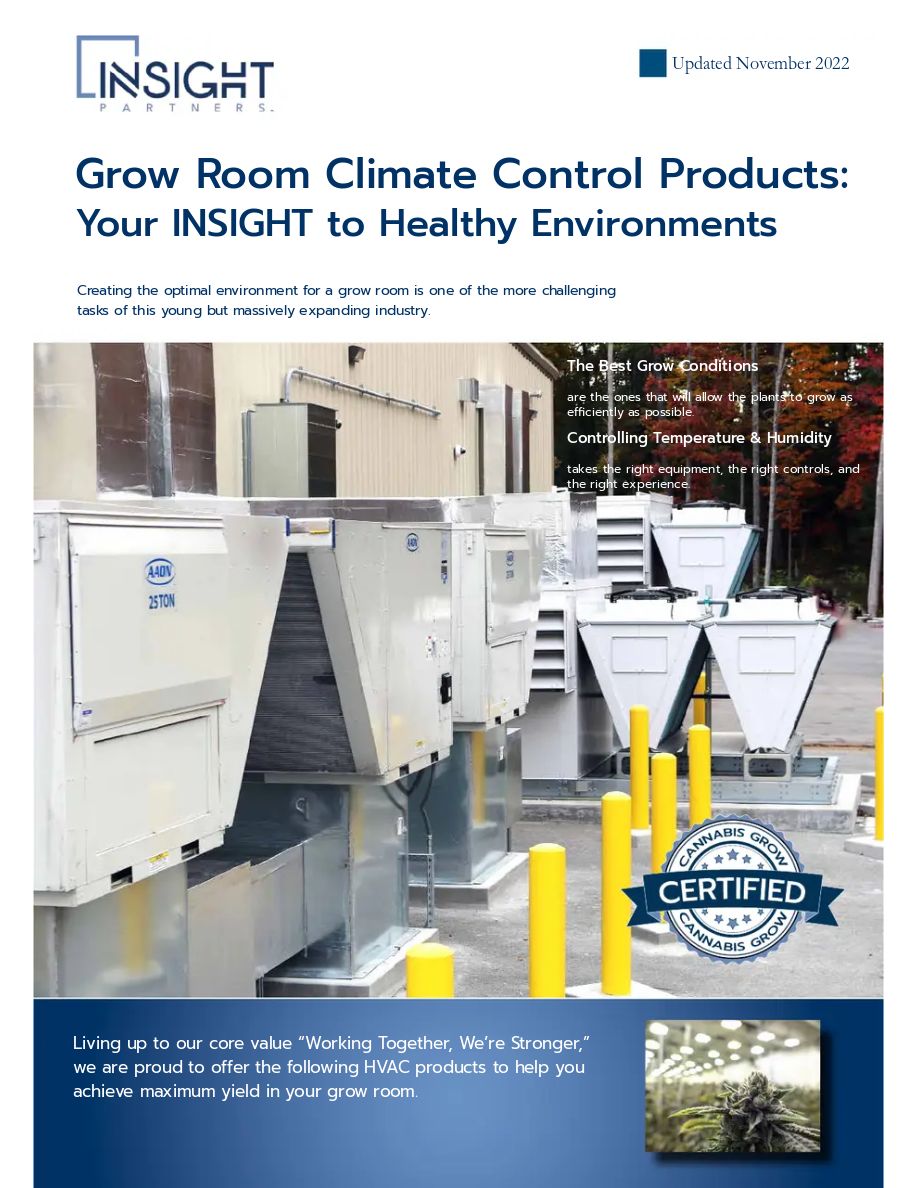

Living up to our core value “Working Together, We’re Stronger,” we are proud to offer the following HVAC products to help you achieve maximum yield in your grow room.Grow Room Climate Control Products: Your INSIGHT to Healthy EnvironmentsCreating the optimal environment for a grow room is one of the more challenging tasks of this young but massively expanding industry. Updated November 2022The Best Grow Conditions are the ones that will allow the plants to grow as efciently as possible.Controlling Temperature & Humidity takes the right equipment, the right controls, and the right experience.
2
3At Insight Partners, we represent many HVAC products that can help make your grow room protable. From load calculations, product application, budgeting, installation assistance, controls, and maintenance, let us help develop an indoor environment that is right for you! Our dedicated team of professionals are here to help guide you through the design, purchase, and maintenance of your grow room HVAC system. With millions of square feet of indoor and greenhouse facilities under our belts, we have the expertise to be your best HVAC resource. We work with the top manufacture’s to nd the best solution for your project. Our goal is to help you nd the right combination of HVAC system rst cost and operating cost, while assuring redundancy and maximizing yield for your grow applications. We would appreciate the opportunity to meet with you and answer any questions. To those that design, construct, OPERATE, AND MAINTAIN GROW ROOMS, INSIGHT PARTNERS is the comprehensive HVAC and solutions provider with a Nationwide Network of Experts committed to your success.Who Is Insight Partners?Mark MurrayPresidentInsight Partners
4As the market leader in standalone dehumidiers for grow rooms since 2006, AGronomics IQ is one of the most trusted dehumidier brands in the cannabis industry.8-9AGronomic IQAirTube fans’ patent pending technology provide each layer of plants with consistent velocity of conditioned air, do not interfere with lighting, and have exceptional exibility. 10-11AirTubeArmstrong’s connected uid ow solutions provide optimal reliability and complete system transparency through real-time HVAC performance data and unrivalled intelligence. 12-13ArmstrongBosch’s highly reliable packaged water source cooling terminal units are designed for redundancy, exibility, and accurate space temperature and humidity control. 14-15BOSCH6-7AAONWorld leader in packaged and split system HVAC units. With factories in Tulsa, OK, and Longview, TX, AAON builds units to accurately control space temperature and humidity.Dynamic polarized-media ltration technology is available in a wide variety of products to remove bacteria, molds, and mildew from growing environments to optimize plant health. 16-17Dynamic Air QualityFresh-Aire UV systems safely neutralize airborne microorgan-isms as well as address exhaust odors. The systems are highly effective at maintaining disinfected HVAC equipment that is prone to mold and fungus.18-19Fresh-Aire UVOur in-house controls division will work with you, the grower, to assure the optimal temperature and humidity that will allow for the healthiest growing conditions, thus maximizing yield.20-21Insight ControlsMiller Leaman’s ULTRA Pure RO System is designed to make perfectly pure water for fertiliztion by removing bacteria, viruses, and dissolved solids from your well water or municipal supply.22-23Miller Leaman24-25QuestWith grow facility dehumidiers manufactured in Madison, WI, Quest sets the gold standard in energy efciency, durability, reliability, and exibility.
5All products listed in this catalog are represented by Insight Partners. Through real world application and experience, this equipment has been proven to be perfectly suited for the needs of grow room facilities. You Grow the Cannabis, We Condition the Climate.Dehum.Be on the Lookout!Use these icons for recognition of differing HVAC technologies, benets to your grow facility, and who to contact.Purify PhoneControlsFilterAirow EmailTemp.Water IndoorAg@InsightUSA.comContact us today for pricing, selections, or formal presentations on any of the following products.
IndoorAg@InsightUSA.com6AAON - The Innovators VideoOur knowledgeable independent manufacturers’ representativescan help you select the right equipment to meet your needs.AAONAAON is a world leader in creating precise indoor environments, efciently, through the manufacture of premium HVAC equipment.2021 Product of the YearAAON, Inc., RZ Series Rooftop Unit has been selected 2021 Commercial Comfort Product of the Year in the Rooftop Units category, by the staff of Engineered Systems magazine.AAON, INC. (NASDAQ-AAON), today announced its results for the second quarter of 2021. Net sales for the three months ended June 30, 2021, increased 14.6% to an all-time record high of $143.9 million from $125.6 million in the same period in 2020.Industry Leader In 2021Create conditions to allow plants to grow as efciently as possible.ENVIRONMENTDesigned, congured, and manufactured to meet the needs of your grow facility
Plants Are Not People7 Work with engineers who have experience with the complex nature of grow facilities. Choose HVAC equipment that is designed for your application. Pick a supplier that has experience with selling, supporting, and maintaining equipment in the grow room space. Packaged Units, Split Systems, Air Cooled, and Water Cooled Designed For Temperature and Humidity Control RQ/RN/RZ Packaged Rooftop and Ground Mounted Units are manufactured in Tulsa, OK, and are available from 2 through 240 tons.Plants are not people, data servers, or hospital rooms, and this could affect how engineers approach grow facilities. Cannabis is a plant. Plants are living, dynamic organisms that grow from a seed or small seedling plant to full maturity. This introduces challenges for engineers designing and selecting HVAC equipment for grow houses.Pro tips:
8Agronomic IQ has become the choice of 9 out of the 15 largest cannabis companies in North America because it delivers incomparable competitive advantage. Unlike any other HVAC offering, our patented Compressor Wall Technology is designed from the ground up for large-scale growers, to deliver extraordinarily precise temperature and humidity control that boosts both quality and yield. AGronomic IQ“Creating the optimal environment for a grow room is one of the more perplexing tasks of this young but massively expanding industry. Countless growers, large and small, struggle with the challenges of getting temperature and humidity control right to consistently deliver quality product.” Getting Grow Rooms Right, Geof Brown with Dan DettmersWhy Do Smart Commercial Growers Choose Us? Because AGIQ delivers truly revolutionary grow room temperature and humidity control that delivers outstanding ROI and exceptional crop quality and yields above 100 grams per square foot fall straight to the bottom line.Smart HVAC for growthSee 10 Reasons Why Owners Choose Us: https://agronomiciq.com/top-10-reasons/DOWNLOAD THIS MANUAL NOW!
IndoorAg@InsightUSA.com9Setting the Industry Standard With a New Unitary System.Compressor Wall TechnologyPartners. Not Just Vendors We offer commercial growers proven grow room HVAC design expertise, outstand-ing service, and a partnership approach to business that will ensure success for the long term.THE FUTURE OF GROW ROOM DEHUMIDIFICATION Designed from the ground up to meet the demands of the cannabis industry, our revolutionary, patent pending Compressor Wall Technology sets entirely new industry standards for precise room control, reliability, and energy efciency.“Because grow room HVAC represents such a large, mission-critical investment for every grow facility, Getting Grow Rooms Right is an essential read for everyone involved in the planning, design, specication, operation or business performance of any grow facility.” Getting Grow Rooms Right, Geof Brown with Dan Dettmers
IndoorAg@InsightUSA.com10AirTube Fans Rack-Mounted Airow SolutionsPlants want to experience the same airow they would receive in their natural environment. Vertical GrowingIncreases canopy size without taking up additional oor space but creates challenges in delivering air equally through the canopy. That is why we developed the AirTube.Improve indoor plant growth with optimal ventilationand air movementBenets of This Product: • Delivers air equally through the canopy• Distributes proper air velocity to all levels of growing• Eliminates micro-climates within the canopy• Dials in precise airow to eliminate leaf burn• Coordinate airow with lights• Efcient delivery of CO2
AirTube fans provide each layer of plants with consistent velocity of conditioned air.• No plants are displaced by AirTube fans• AirTube fans do not interfere with the lighting• AirTube can be positioned high, low, or mid-rack as the grower determines• Only 65 watts for up to 760 cfm of free air movement (adjustable cfm)• Water resistant 24V plug and play power for ease of installation and safety• Low acoustic levels11Call Insight Partners today for a private online demo!Our team in Kansas City, KS, is standing by to answer any questions and would be glad to show you the AirTube in action. See The AirTube In Action!The Engineered Solution:Vertical Growing with AirTube FansAirTube Fans
iFMSIntellegent Fluid Management System12Efcient & reliable chilled water & hot water pumping systemsArmstrongBetter overall performance of the entire chiller plant and up to 45% energy savings, including drift management services, relative to a traditional variable speed chiller plants.ipc 9521 Integrated Plant Control System for water cooled chiller plant automation.To make your next project an even greater success, Armstrong offers a solution for your next grow facililty. Armstrong has reinvented and redesigned our pumping solutions to include connectivity and performance management services. Design Envelope solutions provide optimal lifetime efciency, reliability, and lowest cost. No other pumping solution offers the same expanded performance range, one-touch commissioning, sensorless speed control, ow monitoring accuracy, and operating notications.
IndoorAg@InsightUSA.com13Heat Recovery DehumidicationThe Latest In Reliability & RedundancyCommercial Grow Room Cooling & Dehumidication Armstrong Design Envelope iFMS packages provide value far beyond a pumping system assembled from loose components. For savings in design time, installation, and related project costs, as well as energy and maintenance costs, talk to your Armstrong representative about the Design Envelope iFMS.Grow facility HVAC systems spend most of the time dehumidifying the space, which requires a massive amount to reheat. Pre-fabricated and pre-engineered Armstrong pumps systems with ICP Intgrated Plant Control allow you to use heat recov-ery chillers to freely reheat your grow rooms. Armstrong
IndoorAg@InsightUSA.com14The Bosch Group is a leading global supplier of technology and services in the areas of automotive, industrial technology, consumer goods, and building technology. The company presently has more than 440 subsidiaries and is represented in over 150 countries. Bosch Thermotechnology In North AmericaWQ UnitLM UnitBOSCHRigorous factory testing virtually guarantees hassle-free operation from the start, while over 40 years of experience in designing heat pumps for commercial applications are your assurance of a state-of-the-art quality product.BOSCH Quality & ReliabilityThe Bosch Group has more than 40 years of experience in designing HVAC for commercial applications. We rigorously test products in our ISO 9001-2008 and ISO 14001-2004 certied facilities. BOSCH GroupUsing multiple AC units per room provides an extra level of cooling redundancy.REDUNDANCYTerminal water source cooling and dehumidication units
Advantages of BOSCH Water Source Heat Pumps15Bosch Thermotechnology is a leading source of high-quality comfort and grow room systems. We offer geothermal, water-source, and air-source systems as well as controls and accessories for all product lines. Reliable, Redundant Cooling & DehumidicationQV/LM/ES/EP/LV/EC/MC 2-60 Ton Water Source and Air Cooled Standard/High Efciency HVAC Units. Variable Speed ECM Fan Motors combine efcient operation along with the ability to automatically adjust to changes in external pressure drop due to factors such as lter loading to provide consistent air delivery. These motors are ideal for use with high- efciency ltration, such as MERV-13 lters.Highly efcient and compact water source AC units may be the ideal solution for your facility. Our units offer our customers best-in-class temperature and humidity control, efciency, and noise levels along with a wide range of available features and options. All ECM motors feature gradual ramp-up/ramp-down performance to reduce noise and improve comfort. Additionally, these motors offer the ability to reduce air ow in cooling mode in order to “cool to dehumidify” when combined with a thermostat and humidity sensor.
R16DynamicRemove mold, bacteria and mildew, odors and VOCs, while lowering energy and maintenance costs Air Quality SolutionsDynamic polarized-media ltration technology is available in a wide variety of products to remove bacteria, molds, and mildew from growing environments to optimize plant health. Air cleaning systems range from the EDGE carbon ltration solution that removes odors and gas contaminants without energy penalty to 1-inch and 2-inch panels tting into most HVAC equipment. The Dynamic V8 Air Cleaning System sets the standard in air cleaning outperforming anything on the market in contaminant control, energy savings, maintenance and waste reduction, and total cost of ownership.GROWN GREEN: Protect your plants from molds,spores, and powdery mildewIndustry LeaderThe Dynamic V8 Air Cleaning System is an award-winning ltration system that sets the standard for clean air.Cannabis
IndoorAg@InsightUSA.com17MERV 14+ rating with low pressure drop. Retrots your system today.Dynamic AQS V8See How It WorksProud members of the following organizations:Capture and Kill High-output UVC and polarized-media air cleaners combined provide the most effective catch, hold, and kill solution. UVC effectiveness is based on contact time and proximity. The Dynamic system captures the biologicals from the airstream and a scanning parabolic reector focuses a sterilizing beam of UVC on the media, continually sweeping it to provide the time needed to eradicate contaminants.Maximize crop protection while saving energy • Reduces risk of crop loss and improves microbiological compli-ance testing• Removes harmful molds, mildew, and bacteria that affect plant yield• Low static pressure for retrotting into traditional HVAC systems• Lower fan resistance to reduce energy usageSince 1982, Dynamic Air Quality Solutions has designed, engineered, and manufac-tured high-performance IAQ systems. Headquartered in Princeton, New Jersey, our IAQ solutions and products enable us to provide best-in-class service for our custom-ers, focusing on the most challenging environments.
18Fresh-Aire UVControl the EnvironmentDecrease microbes and odors. Increase plant viability. Our Experience ShowsClimatic conditions within cannabis grow rooms are ideal for the reproduction and spread of disease-causing microbes.-Prevents airborne transmission of mold and mildew- Maintain a clean and disinfected HVAC system that is often the source of mold and fungus, mitigating potential blow off - Reduce exhaust odorsCannabis crops must be held to the highest standards. Unfortunately for growers, the bacteria, mold, and fungus that contribute to powdery mildew and other bio-contamination can be spread via airborne transmission. The good news is that Fresh-Aire UV ultraviolet germicidal irradiation (UVGI) systems are proven to neutralize airborne bacteria, mold, and fungus and help prevent them from being transmitted throughout a facility and grow on the HVAC equipment. UV is a powerful tool for cannabis operations to maximize their yields and achieve the highest quality, healthiest product possible.
19Mold and bacteria are microorganisms that attack and destroy plants and, in many cases, decimate crops. Microorganisms cause more crop loss than all other organisms combined, and it is estimated there are more than 8,000 species of mold that affect plants.Cannabis crops are highly susceptible to damage caused by microorganisms. The most common losses are attributed to mold, with the two most problematic species being Botrytis cinerea or “Gray Mold” and Sphaerotheca macularis or “Powdery Mildew.” THE PROBLEM: MOLD and BACTERIA Easily Installed in Your Air Handler or DuctThe Fresh-Aire UV® Core System Treats The Air & Disinfects the HVAC EquipmentThe Fresh-Aire UV® Airborne Duct System & Exhaust Odor Control The evaporator coil, drain pan, and surrounding surfaces within the AHU are often a breeding-ground for problematic mold and fungi. The Fresh-Aire UV TRS high-output germicidal lamp systems not only treat the air, but help maintain a clean, efcient, safe, and disinfected air handling unit and is a very cost-effective way to address microbial contamination, including powdery mildew that can be reintroduced into the facility.The ADS system (mounted parallel in the air-stream) maximizes UV exposure time with the air. Sized according to air velocity (CFM), duct dimension, and biological target, the ADS system is available in a full range of (high output) lamp lengths and congurations to achieve up to a 99.9999% biological reduction on a single pass. The ADS system with oxidizing lamp option allows for a cost-effective means to reduce exhaust cannabis odors. IndoorAg@InsightUSA.com
20Through online monitoring, we continuously track space conditions, looking for conditions that are outside your temperature and humidity requirements.Since we build our systems from the start to nish, we can quickly and easily make customer changes. Designed, installed, and supported in the USA. Your Desired Indoor Conditions IsOur Goal.Insight ControlsDIFFERENTIATORWe undertand HVAC systems and the importance of creating the right climate for your indoor grow. That is why we start with a clear understanding of the usage and desired conditions for each room on your grow facilty. Since we design and program our controsl systems from the ground up, we are able to precisely and consistantly control your indoor climate. Precise Industrial ControlsCustom application-specic environmental controls, including building management systems, HVAC, and lighting. You grow the cannabis. We control the climate.“Our ability to plan and execute a complete custom controls system allows us to work with you, the grower, to create the optimal indoor temperature and humidity, allowing for the healthiest growing and drying condi-tions.” Kirk Patton, GM Insight Controls and Service IndoorAg@InsightUSA.com
Three Critical HVAC Design Requirements For Grow Facilities21Creating the Right Environment to Maximize YieldMOBILE MONITORING & ALERTS Keeping you and your hvac service team in the know at all times.#2 Temperature The optimal temperature conditions for cannabis cul-tivation are between 72F and 85F. Deviating outside of these parameters for prolonged periods of time signicantly inhibits the plant’s development, weakens its immune system, and makes it more susceptible to diseases. #1 Airow Effective airow distribution design is essential for plant growth and development. Airow affects the leaf boundary layer, which is a thin zone of calm air that surrounds each leaf. A thick boundary layer can reduce the transfer of heat, CO2, and water vapor from the leaf to the environment.#3 Humidity The greatest challenge for designing HVAC systems is controlling relative humidity and keeping the proper VPD (Vapor Pressure Decit). As the plant grows, the optimum %RH changes, creating even a greater challenge.
Water Quality & Plant Health Factors22RO systems for growfacility irrigationMiller- LeamanIf you want the best foryour cannabis plants, gowith Miller-Leaman reverseosmosis (RO) systems. Wewant your plants to drinkthe very best!Water quality is essential to proper plant growth. When waterquality is off and there are unnecessary particles or minerals in thewater, this interferes with the intake of proper nutrients and waterabsorption by the plant. Water quality should always be one of therst factors to consider when evaluating plans for a new or existinggrow room. Along with helping to keep plants healthy, good waterquality will also help to ensure that equipment life is extended,which will cut costs in the long run. No matter what type of watersource you’re pulling from, a reverse osmosis (RO) system isessential to properly ltering your grow room irrigation water. IndoorAg@InsightUSA.com
23The Ultra-Pure RO System Who We AreMiller-Leaman, Inc., was founded in 1991 by Bill Miller, Marty Shuster, and Robert Leaman. With over 30 years of experience in manufac-turing ltration products for our customers, Miller-Leaman, Inc., has the know-how and credibility to deliver the right product to you. Manufacturing operations and management personnel are located in Daytona Beach, Florida, in a newly renovated, state-of-the-art 52,000-square-foot facility. If you are ever in the area, we encourage you to visit our facility for a plant tour.• Free-standing stainless steel frame• Stainless steel membrane housings, clamps, ttings, and fasteners• Totally enclosed fan-cooled pump motor (TEFC)• Stainless-steel process pump• Integrated controller with onboard TDS meter, temperature monitoring, and status monitoring that includes: o Fault monitoring o Annunciated alarms o Temperature and pressure displays o Hours of operation and hours between pre-lter changes o MADE IN THE USAGrowers opt for puried water, especially if utilizing hydroponic techniques. You will see a difference in water purication techniques, but reverse osmosis (RO) is one of the most effective and reliable methods on the market. RO uses a semipermeable membrane, where even dissolved solids are able to be removed from a water source. This theoretically makes the water perfectly pure, removing bacteria, viruses, and dissolved solids from water. RO is not just used in horticulture. In fact, it’s mostly used to purify drinking water, so why not give your cannabis plants the very best? AboutEach skid system consists of:
24The true original never goes out of style.DEHUMIDIFICATION Create a climate that will maximize your grow.Quest Dehumidiers has the industry expertise and track record to deliver the most consistent and predictable grow room environments, critical for producing high-quality yields in an increasingly competitive cannabis industry. Year after year, Quest continues to be the proven choice of top growers.From small grow rooms to large, multi-room commercial operations, we have the right size units to manage your humidity.WORLD’S MOST EFFICIENTOur team of industry experts understand the nuanced needs of cultivators. From managing humidity to preventing bud rot, we know what works and what doesn’t.WORLD’S MOST EFFICIENTEstablished in 2006, Quest units are on more farms than any other dehumidier. We listen. We innovate. We continue to deliver products that meet customers’ changing needs.WORLD’S MOST EFFICIENTQuest’s team is readily available to help size, spec, and install our units to ensure your environmental control needs are optimized for your grow.WORLD’S MOST EFFICIENT
SUPERIOR MERV-13 FILTRATIONCaptures mold,powdery mildew, and some virusesINTEGRATED HANDLESWith dedicated hang pointsPATENTED MULTI-COILTECHNOLOGYFor superior efciencyDIGITAL CONTROL Easy-to-use interface with option to use external controlsMORE EFFICIENT = LOWER UTILITY COSTS MORE EFFICIENT = LESS HEAT OUTPUTQUALITY CONSTRUCTIONAVAILABLE IN 110, 220, 277, & 480 VOLT SOLUTIONSUnderstand how Quest dehumidification can help your cultivation.25 IndoorAg@InsightUSA.com
26Thank you for reading our catalog! CONTACTUSTODAY!We are proud to represent the following manufacturing partners.Florida
27“Backed by decades of dehumidication experience and over 1,000,000 ft2 of conditioned grow facility climates, Insight Partners is ready to support any new construction or retrot challenge.” Adam Shaffer, Account Executive, Insight PartnersContact us today!InsightUSA.comIndoorAg@InsightUSA.comSome of our valued customers®CANNABIS CARETMSchedule Your 15 MinDiscovery Call
Insight Partners6705 Parke East BoulevardTampa, FL 33610National Network,Local PurposeOur purpose is what drives us - to create, adapt, and rene our nationwide network with a local focus on you and your success.InsightUSA.comPublication: cat-gr-orida-11.12.22 IndoorAg@InsightUSA.com
